Flow Switch

  • PVC inline Flow Switches
PVC inline Flow Switches

PVC inline Flow Switches

  • GE-313AD PVC Pipe Inline
  • Product description: GE-313AD Teflon Flow Switch with PVC Tee pipe, low cost, combats the problems of corrosion and friction with all wetted parts of Teflon Plastic, could used in all kinds of corrosion condition
  • ISO9001 & ISO14001 & IS045001
This PVC pipe inline Paddle flow switch is low cost, combats the problems of corrosion and friction with all wetted parts of Teflon Plastic, could used in all kinds of corrosion condition, e.g. Paper mills, chemical plants, sewage treatment plant, washing plant, printing, printing and dyeing, electroplating plants, pharmaceutical plants. CE certificate.



Easy Installation

Teflon Plastic Material

High Performance in Chemical and Corrosion Environment

Special Useful in SPA and Sea Water Appliance





Technology Data:
* Max Loading: 70W
* Max Voltage: 350V DC; 300V AC
* Max Current: 1.0A
* Max Pressure:1bar or 10bar
* Work Temperature: -30C ~ 110C
* Work Voltage: 5V~12V ~24V~36V
(if 110V 220V 380V, it need connect with relay)

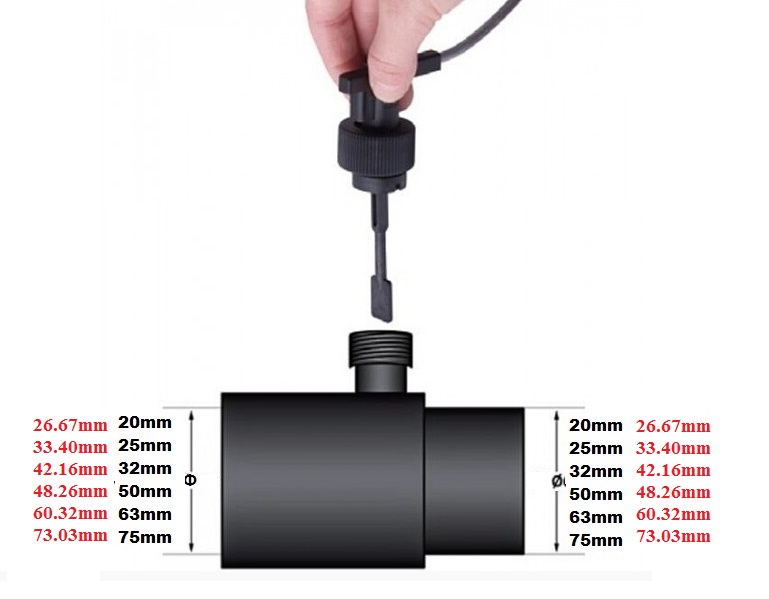

Pipe Size: 25mm 32mm 40mm 50mm 63mm 75mm 90mm
26.67mm 33.4mm 42.16mm  48.26mm  60.32mm  73.02mm
(if other pipe size, it could be customized)




Type

for Pipe Size

Max Pressure

Flow Setpoint

GE-313AD020

20mm

1bar/10bar

1.0-3.0L/min

GE-313AD025

25mm

1bar/10bar

2.0-5.0L/min

GE-313AD032

32mm

1bar/10bar

3.5-8.0L/min

GE-313AD040

40mm

1bar/10bar

5.819.5L/min

GE-313AD050

50mm

1bar/10bar

9.8-27.5L/min

GE-313AD063

63mm

1bar/10bar

14.5-55L/min

GE-313AD075

75mm

1bar/10bar

28.5-72.5L/min

GE-313AD090

90mm

1bar/10bar

45-115L/min



ANSI  & BS PVC pipe

Type

for Pipe Size

Max Pressure

Flow Setpoint

GE-313AD026

26.67mm

1bar/10bar

2.0-5.0L/min

GE-313AD033

33.40mm

1bar/10bar

3.5-8.0L/min

GE-313AD042

42.16mm

1bar/10bar

5.819.5L/min

GE-313AD048

48.26mm

1bar/10bar

9.8-27.5L/min

GE-313AD060

60.32mm

1bar/10bar

14.5-55L/min

GE-313AD073

73.02mm

1bar/10bar

28.5-72.5L/min
