Flow Sensor

  • 6mm 9mm In-Line Water Flow Sensor

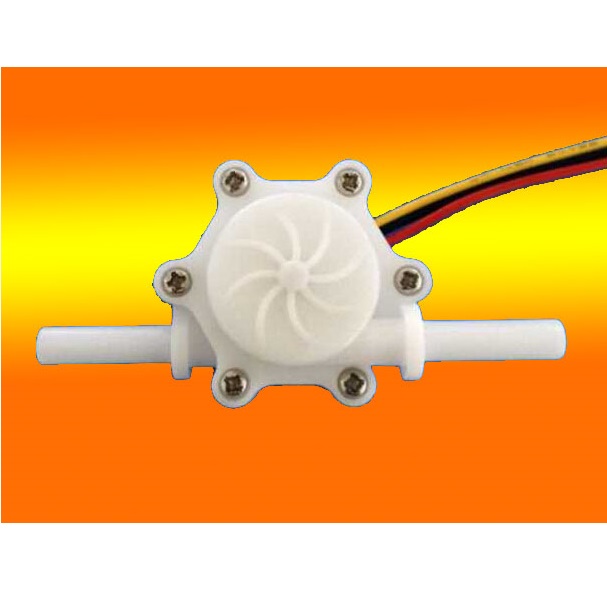

6mm 9mm In-Line Water Flow Sensor

6mm 9mm In-Line Water Flow Sensor

  • FDA standard, potable liquid flow sensor
  • Product description: Direct insert, In-line Quick connect plumbing fittings, FDA standard material, widely used in RO water instrument, dispenser water, water heating system, drinking water system, potable liquid flow mon
  • ISO9001 & ISO14001 & IS045001
Direct insert, In-line Quick connect plumbing fittings, adopt the FDA standard material, widely used in RO water instrument, dispenser water, water heating system, drinking water system, potable liquid flow monitor system, to calculate the flow rate. International Protection could be IP68 (Optional). CE certification.

It is installed in the water heater inlet, used to detect water flow, when the water through flow rotor components, Magnetic rotor rotation and speed changes with the flow, hall sensor output pulse accordingly. Signal feedback to the controller by the controller to judge the size of the water flow, adjust and control.

Specification:
1. POM Material, accord with FDA Standard
2. Pipe Size: 6.35mm 1/4" OD quick connect plumbing fittings
3. Flow Range: 0.15-1.5L/MIN, 0.2-2.5L/MIN, 0.3-3.5L/MIN
4. Voltage: DC3V ~ DC18V DC5V is standard, DC24V is availbale
5. Pulse duty factor: 50%
6. Accuracy: ±3%
7. High Level of Pulse Output: >4.5V (DC5V)
8. Low Level of Pulse Output: <0..5V (DC5V)
9. Max Pressure: 8.0bar
10. Insulation Performance: 100MΩ

11. Hall Component, made in Japan

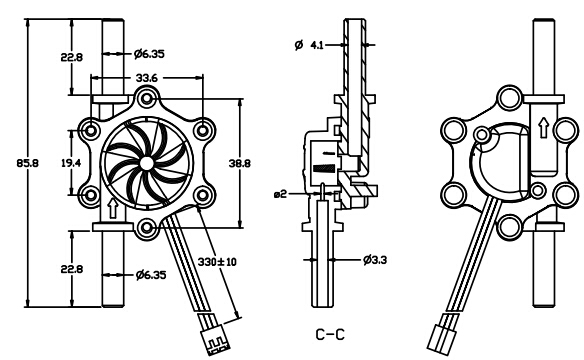

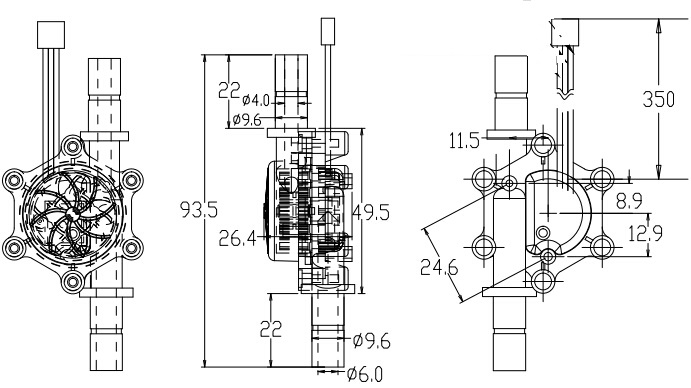

Drawing



Point Chart:

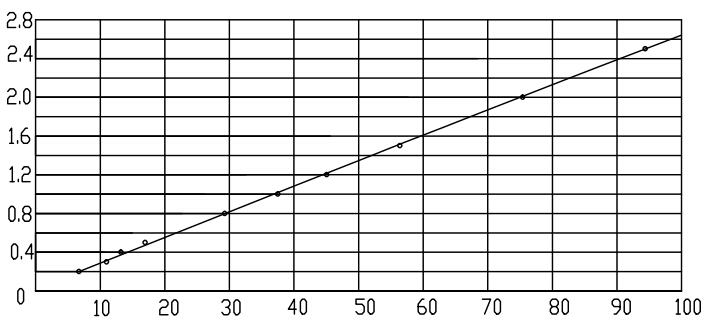

1. 6mm Flow Sensor Range:  0.15L/min - 1.5L/min
F=57xQ ±3%    F= Frequency Hz;   Q=Liter

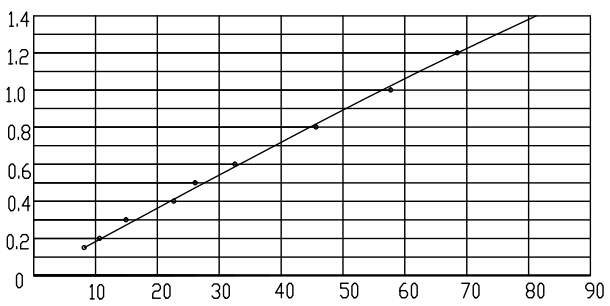

2. 6mm Flow Sensor Range:  0.2L/min - 2.5L/min
F=36xQ ±3%    F= Frequence Hz; Q=Liter

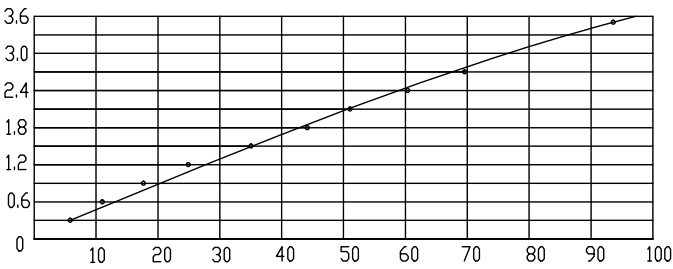

3. 6mm Flow Sensor Range:  0.3L/min - 3.0L/min
F=23xQ ±3%    F= Frequence Hz; Q=Liter

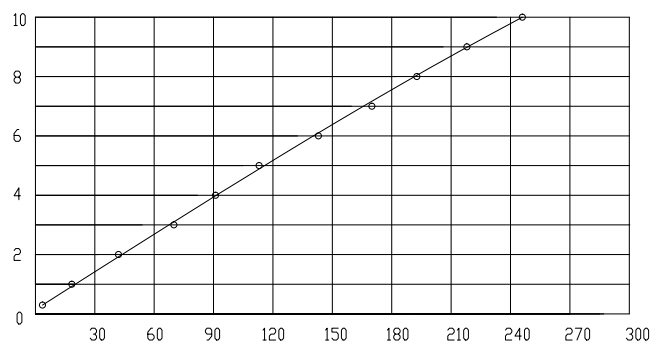

4. 9mm Flow Sensor Range:  0.30L/min - 10.0L/min
F=24xQ-5  ±3%    F= Frequency Hz;   Q=Liter
