Flow Switch

ATEX Calorimetric Flow Switch

EX-d ATEX certificate
DPDT switch signal is available
Ex db IIC T6 Gb (-20℃≤Ta+80℃),
Ex tb IIIC T85℃ Db (-20℃≤Ta+80℃)
Product description: GE-325-Ex Thermal Flow Sensor is known as ATEX Calorimetric Flow Switch, designed as Explosion Proof type, could work in the Areas with potentially explosive atmospheres.
ISO9001 & ISO14001 & IS045001

GE-325-Ex Thermal Flow switch could be used to measure and monitor the Gas Flow and Liquid Flow, as a stability and sensitive Calorimetric flow switch, widely used in Petroleum Chemical Industry. It adopts a stabilized Ex-proof shell to isolate the flammable point from external gas and dust, achieve the Ex grade to Ex db IIC T6 Gb (-20℃≤Ta+80℃), Ex tb IIIC T85℃ Db (-20℃≤Ta+80℃). It has domestic and international ATEX explosion-proof certificates. There are a variety of range options, and the signal output can be SPDT PNP or NPN.

The objection of the declaration is in conformity with the relevant EU harmonization legislation: ATEX directive 2014/34/EU, Machinery directive 2006/42/EC. The ATEX grade is Ex db IIC T6 Gb (-20℃≤Ta+80℃), Ex tb IIIC T85℃ Db (-20℃≤Ta+80℃) IP65; or Ex II 3GD Ex dc IIC T6 Gc (-20℃≤Ta≤+80℃) and Ex tc IIIC T85℃ Dc (-20℃≤Ta≤+80℃) IP65 for gas and dust explosion

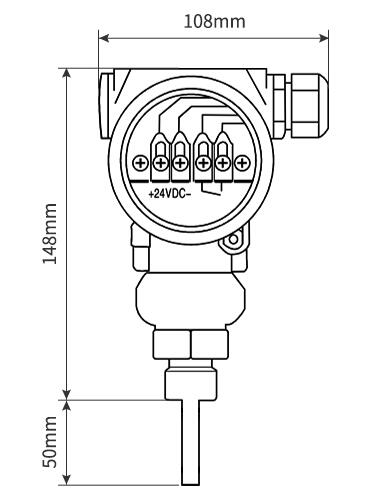

Specification:

Connection size: 1/2'' or 3/4" or 1" male thread or Flange
Probe Material: SUS304 or SUS316L or PTFE
Probe Length: 30mm to 100mm
Output: relay NO or NC , or NPN, PNP. 4-20mA DPDT in option
Power Supply: DC 24V as standard , AC 220V in option
Ex Grade: ExdIIBT4 or ExdbIICT6
Protect Grade: IP67
Electronic Connection: M20x1.5
Max Pressure: 100bar
Medium Temperature: -40C ~ 80C
Flow Speed: 0.1m/s ~ 30m/s (Gas, Air); 0.01m/s ~ 10m/s (Liquid)
