Flow Switch

  • VK315 small size flow switch

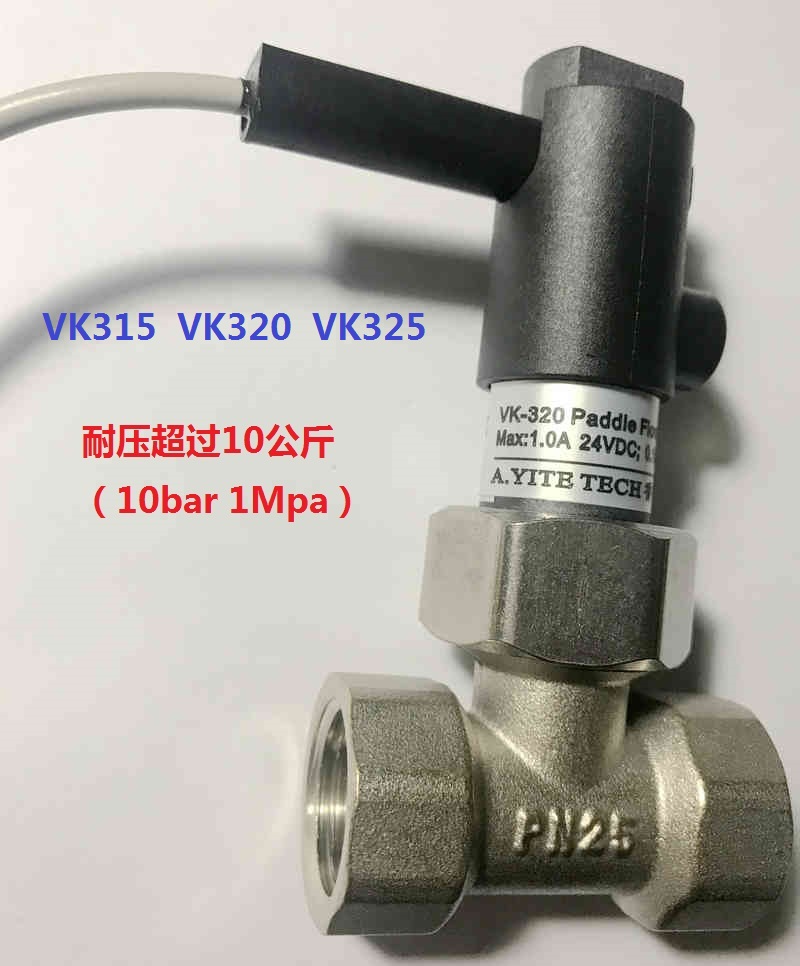

VK315 small size flow switch

VK315 small size flow switch

  • smart type DN15 DN20 DN25
  • Product description: small size flow switch, inexpensive, reliable unit to monitor the presence or absence of flow in a system. The VK315 flow switch is used to monitor unattended equipment and protect it from costly da
  • INQUIRY

vk315 series small size flow switch,  inexpensive, reliable unit to monitor the presence or absence of flow in a system. The VK315 flow switch is used to monitor unattended equipment and protect it from costly damage


* Pipe size: G1/2" male or female, G3/4"-F, G1"-F

* Protection Grade: IP65 (IP68 optional)

* Media Temperature: -30~110 C
* Output: SPST BMF Magnetic Switch
(Normal Open is standard, N.C is optional)
* Max Voltage: 350V DC; 300V AC
* Max Switch Current: 1.0A
* Max Carry Current: 2.5A
* Contact Rating: 70VA
* Max Static Pressure: 10 Bar
* Metering Substances: Gas, Water, Oil
