Ex-proof Air Flow Velocity Sensor | ATEX Duct Air Flow Speed Transmitter

Ex-proof Air Flow Velocity Sensor | ATEX Duct Air Flow Speed Transmitter

  • ATEX Explosion Proof ExdIICT6
  • Max Temperature 600C
  • IP68 water proof
  • CE certificate
  • Product description: ATEX Explosion Proof Air Flow Velocity Transmitter, Measure the flow velocity by Pitot tube with differential pressure sensor, then calculate the flow rater with the Cross sectional area.
  • INQUIRY

GE-374-EX Air Flow Velocity Transmitter is designed for air flow measuring, monitoring and controlling. It Measure the flow velocity by Pitot tube with differential pressure sensor, then calculate the flow rater with the Cross sectional area.


ATEX Explosion Proof Air Flow Velocity Meter


principle of ATEX air flow velocity meter
Character:
* No any moving parts
* Long term measurement, accurate, reliable, sensitive
* Temperature compensation with wide measuring range
* Multiple outputs for choose  4-20mA, 0-10V, RS-485 or 1-4.5V

* ExdIICT6

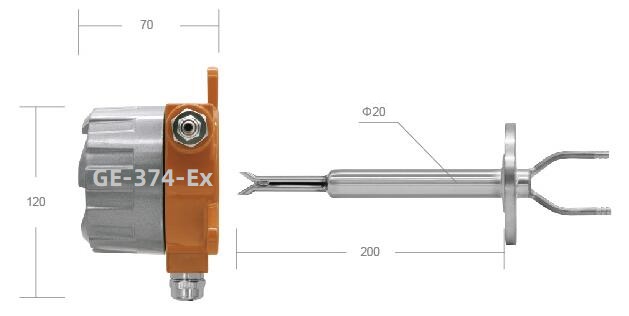

dimension of shell


Specification:
Velocity Flow Range: 0~5m/s~15m/s~20m/s~25m/s~30m/s~40m/s~70m/s
Accuracy: <(0.2m/s+3% measuring value) @1~20m/s, 25 C, 55%RH 1013hPa
Response Time: 2s
Temperature Compensation:10C~70C
Output: 1-4.5V, 4-20mA, 0-10V, RS-485, Modbus, Relay
Power: 18~30VAC/DC, 24VDC is standard
Housing: Ex-proof Aluminum
Protection:IP68, NEMA4


sensor of air flow velocity


How to order:
1. Type number: GE-374-Ex
2.Flow Velocity range: 0~5m/s~15m/s~20m/s~25m/s~30m/s~40m/s~70m/s
3.Cross sectional area of air flow pipe or duct
4. Output: 1-4.5V, 4-20mA, 0-10V, RS-485, Modbus, Relay (you could choose one of them, or choose 2 or more of those output, price will be different)
5 Special demand
