Digital Differential Pressure Switches

Digital Differential Pressure Switches

  • CE certificate
  • ATEX explosion proof is available
  • gas and liquid.
  • Product description: differential pressure switch adopts diffusion silicon differential pressure sensor and stainless steel case, the two pressure interfaces can be connected on the measured pipeline or impulse line, suit
  • ISO9001 & ISO14001 & IS045001

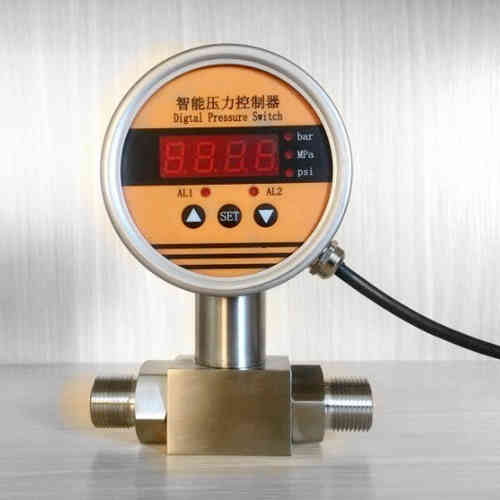

GE-209D differential pressure controller is a digital differential pressure switch. It has two differential pressure setting values, and the action value of the differential pressure switch can be precisely adjusted. This product integrates pressure difference measurement, display, and control in one pressure difference measurement and control product.

1. φ100 standard dial plate
2. 4 digits LED display with high resolution, no indication error
3. Button adjustment and set up parameters on site
4. Relay output 220V/3A of two ways control

Digital Differential Pressure Switch


Power Supply: 24VDC/220VAC
* Output: 2 SPDT relay

* Two independently adjustable set points with fixed dead band.
* Ingress protection: IP66
* Dead band: narrow, fixed.
* Operating Temperature: -30~80℃
* Process connections: M20x1.5 Male thread or others.
* Process fluid: water, gas, oil
* Range: 0-1.0 bar****35.00bar max
* Factory adjusted set points:
* Min. Set point = 380 mbar (decreasing)
* Max. Set point = 2 bar to 35bar (increasing)

Accuracy: ≤0.5%F.S
* Overload Capacity: 150%F.S.
* Response Time: <30ms
* Stability:  <0.1%/year
* Display: 0.56" Nixie Tube
* Display Range: -1999~9999
* Medium Temperature: -40~150℃(Heat radiator must be used if medium temperature over 80℃)
* Relative Humidity: 0-90%
